Single Row

Showing 85 – 96 of 98 results Showing all 98 results Showing the single result No results found

Part No.	Pitch	Rated Voltage	Rated Current	Connection Method	Description

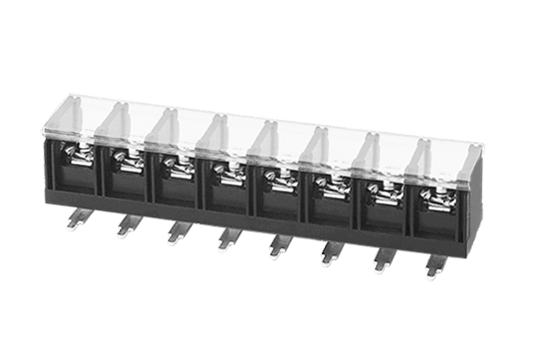

DT-7C-B18W-XX	13.00mm	600V	40A	Screw Connection	Barrier terminal blocks, screw connection, Pitch : 13.00mm, M4, 600V, 40A
0166-80XX	16.00mm	600V	65/85/100	Screw Connection	Barrier terminal blocks , screw connection , Pitch : 16.00mm , M5 , 600V , 65/85/100A

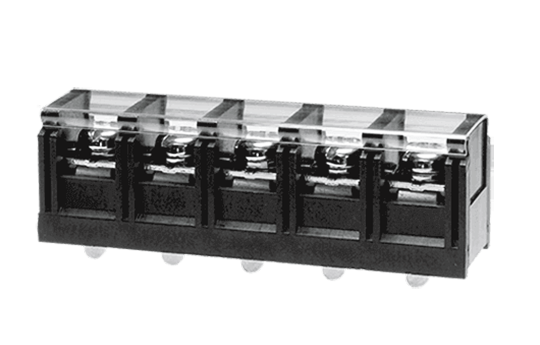

0166-80XXC	16.00mm	600V	65/85/101	Screw Connection	Barrier terminal blocks , screw connection , Pitch : 16.00mm , M5 , 600V , 65/85/100A

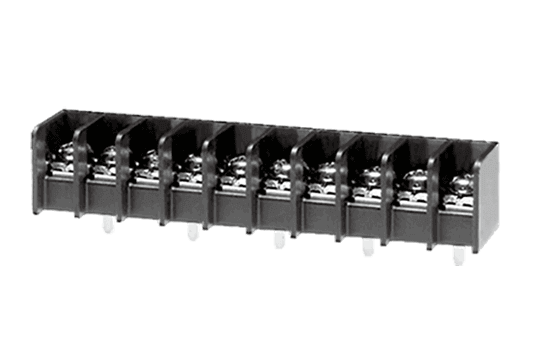

0167-10XX	7.90mm	300V	20A	Screw Connection	Barrier terminal blocks , screw connection , Pitch : 7.90mm , M3.5 , 300V , 20A

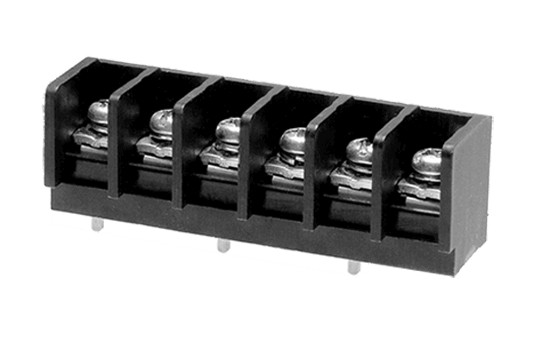

0167-50XX	11.00mm	600V	30/50 (With Ring or Fork terminals)	Screw Connection	Barrier terminal blocks, screw connection, Pitch : 11.00mm, M4, 600V, 30A/50A

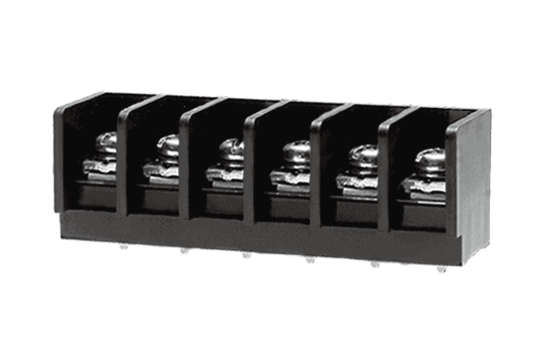

0167-52XX	11.00mm	300V	30A	Screw Connection	Barrier terminal blocks , screw connection , Pitch : 11.00mm , M4 , 300V , 30A

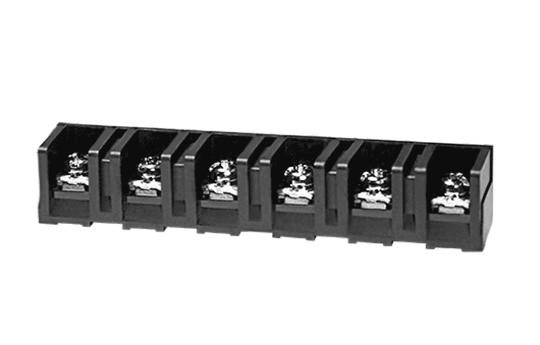

0167-70XX	13.00mm	600V	20A	Screw Connection	Barrier terminal blocks , screw connection , Pitch : 13.00mm , M3.5 , 600V , 20A

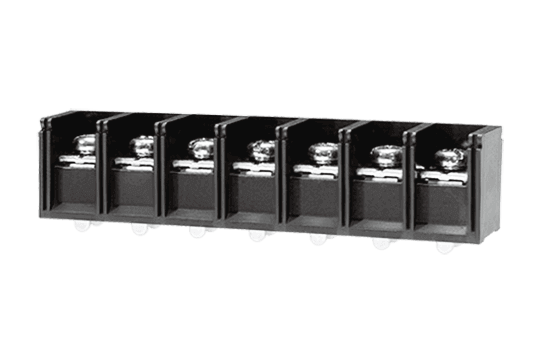

0167-80XX	16.00mm	600V	65 Str/85 Sol	Screw Connection	Barrier terminal blocks , screw connection , Pitch : 16.00mm , M5 , 600V , 65/85A

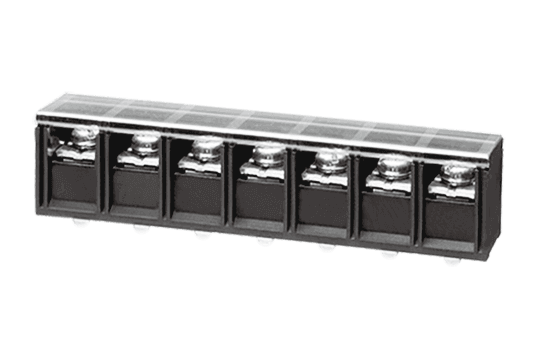

0167-80XXC	16.00mm	600V	65 Str/85 Sol	Screw Connection	Barrier terminal blocks , screw connection , Pitch : 16.00mm , M5 , 600V , 65/85A

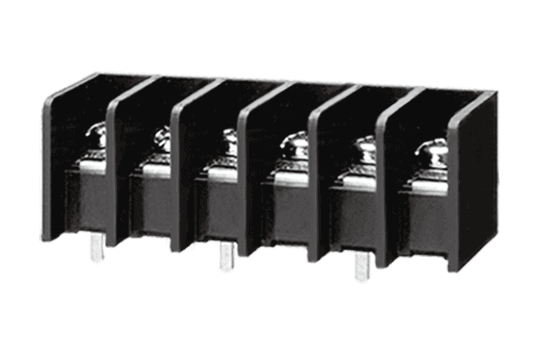

0167-90XX	8.80mm	600V	20A	Screw Connection	Barrier terminal blocks , screw connection , Pitch : 8.80mm , M3.5 , 600V , 20A

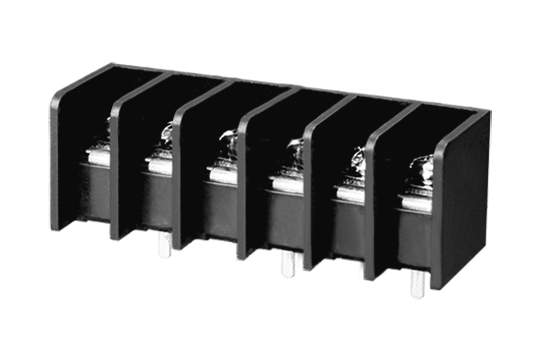

0167-91XX	8.80mm	600V	20A	Screw Connection	Barrier terminal blocks , screw connection , Pitch : 8.80mm , M3.5 , 600V , 20A
0186-10XX	7.62mm	300V	10A	Screw Connection	Single Row, Screw Connection, Pitch :7.62mm, M3, 300V, 10A
