Character LCD Display Modules

Showing 13 – 24 of 38 results Showing all 38 results Showing the single result No results found

Display Format	Model No.	Structure	Size(inch)	Outline Dimension(mm)	Viewing Area(mm)	Active Area(mm)	Character Size(mm)	Dot Size(mm)	Duty	Interface	IC

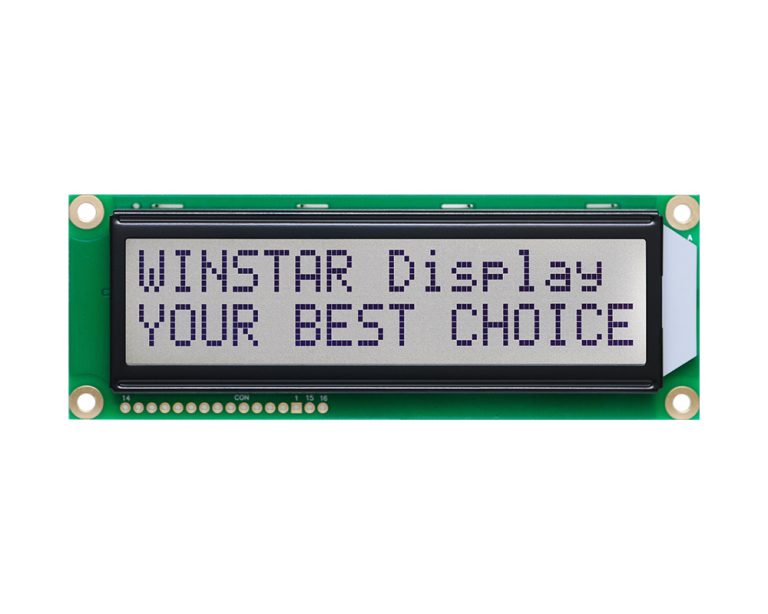

16×2	WH1602L1	COB	2.26	122×44	99×24	94.84×20	4.80×8.56	0.92×1.10	1/16	6800,SPI,I2C	ST7066,RW1063

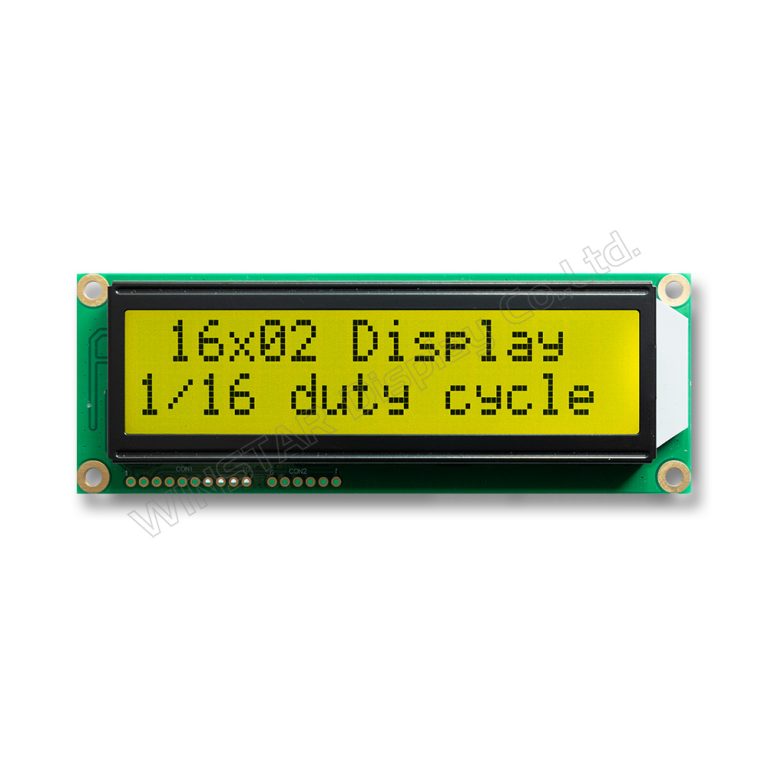

16×2	WH1602LR	COB	3.79	122×44	99×24	94.2×20	4.8×8.06	0.92×1.1	1/16	UART	ST7066

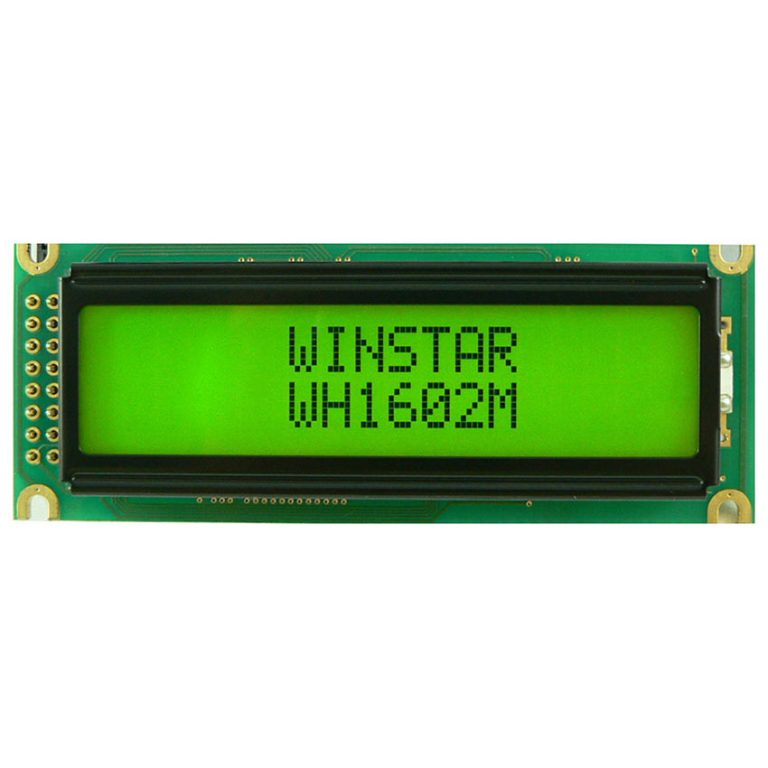

16×2	WH1602M	COB	2.26	85×32.6	66×16	56.2×11.5	2.95×5.55	0.55×0.65	1/16	6800,SPI,I2C	ST7066,RW1063
16×2	WH1602O	COB	2.26	85×25.2	66×16	56.2×11.5	2.95×5.55	0.55×0.65	1/16	6800,SPI,I2C	ST7066,RW1063

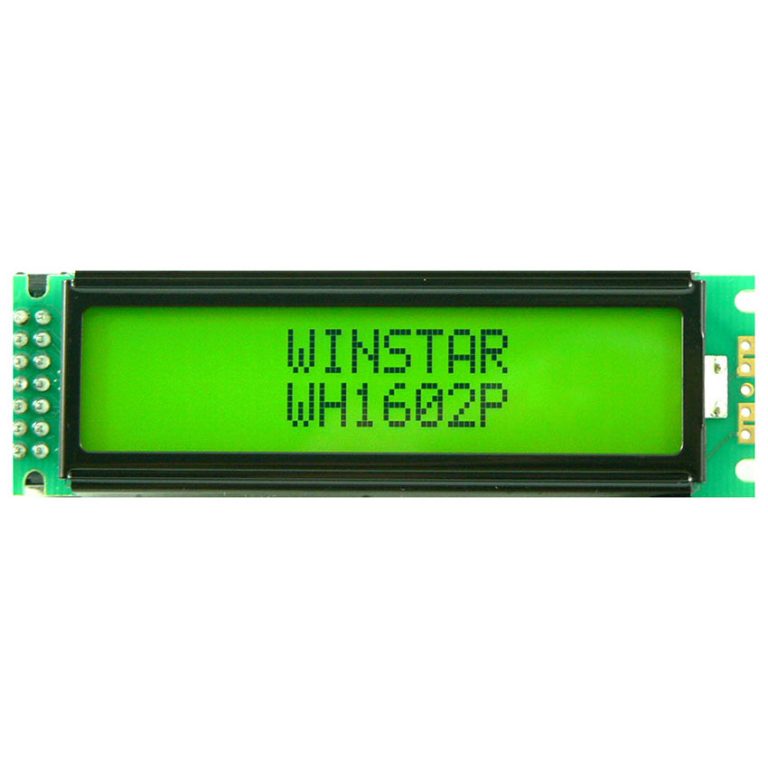

16×2	WH1602P	COB	2.26	85×25.2	66×16	56.21×11.5	2.95×5.55	0.55×0.65	1/16	6800,SPI,I2C	ST7066,RW1063

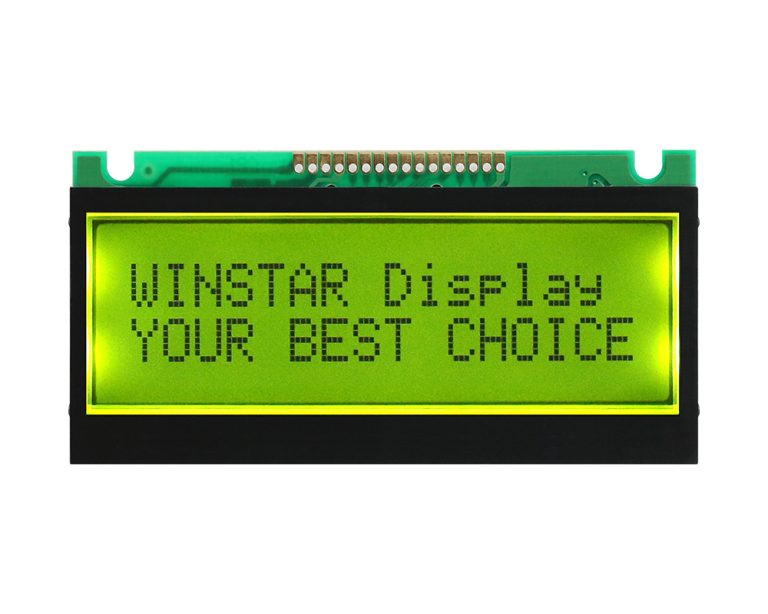

16×2	WH1602S	COB	1.88	59×29.3	52×15	46.7×9.84	2.45×4.67	0.45×0.54	1/16	6800,SPI,I2C	ST7066,RW1063

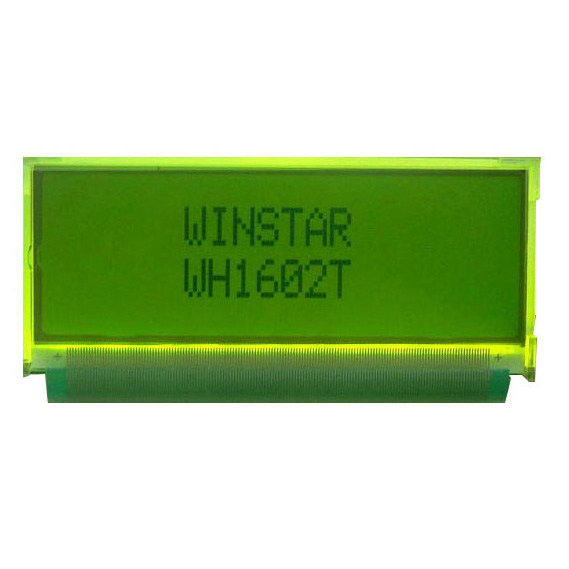

16×2	WH1602T	COB	1.97	65.4×28.2	54.8×19	48.42×12.12	2.67×5.57	0.51×0.67	1/16	6800,SPI,I2C	ST7066,RW1063

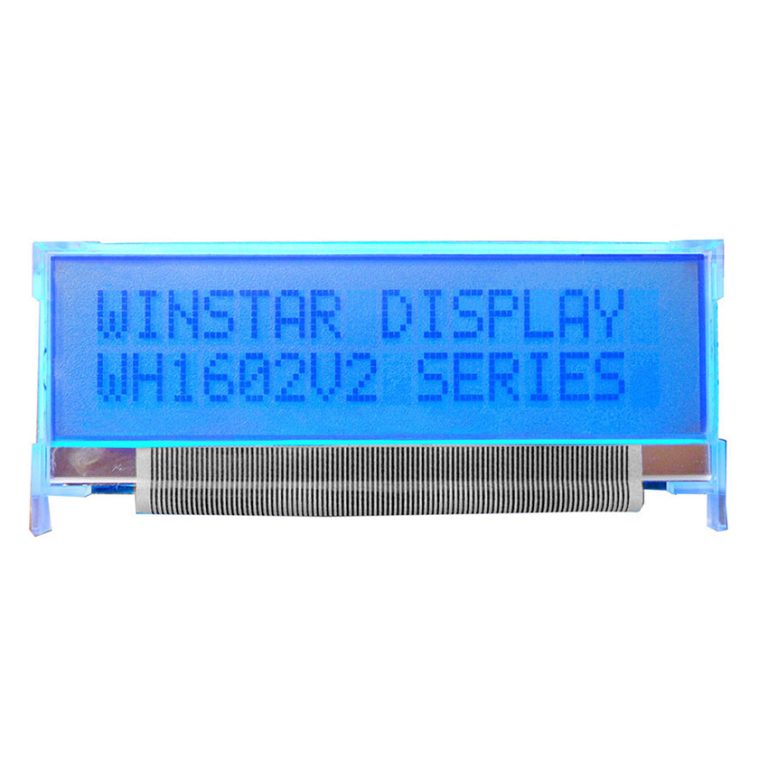

16×2	WH1602V2	COB	2.26	66.7×23.3	61x×15.9	56.2×11.85	2.95×5.55	0.55×0.65	1/16	6800,SPI,I2C	ST7066,RW1063

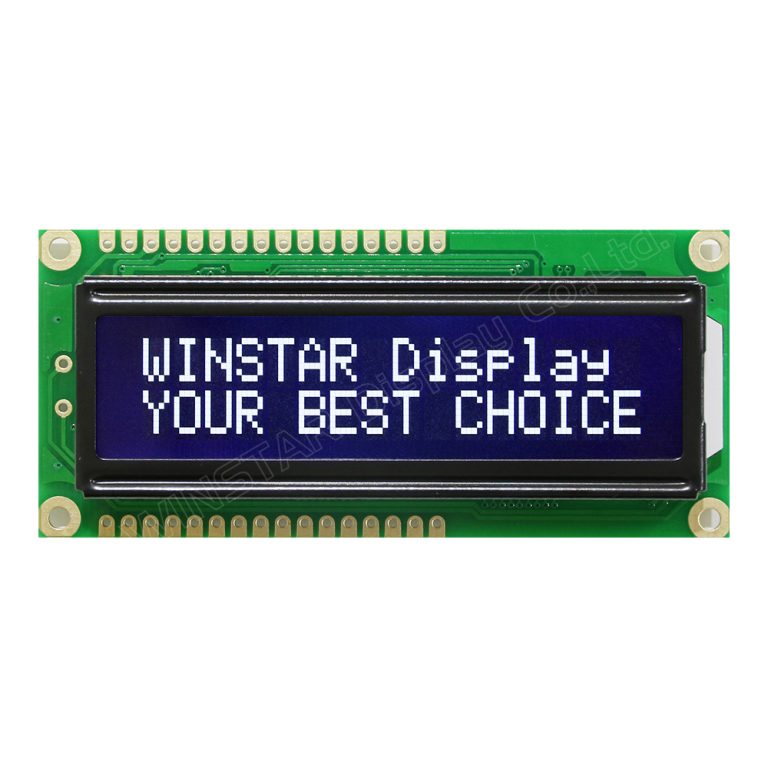

16×2	WH1602W	COB	2.26	80×36	66×16	56.2×11.5	2.95×5.55	0.55×0.65	1/16	6800,SPI,I2C	ST7066,RW1063

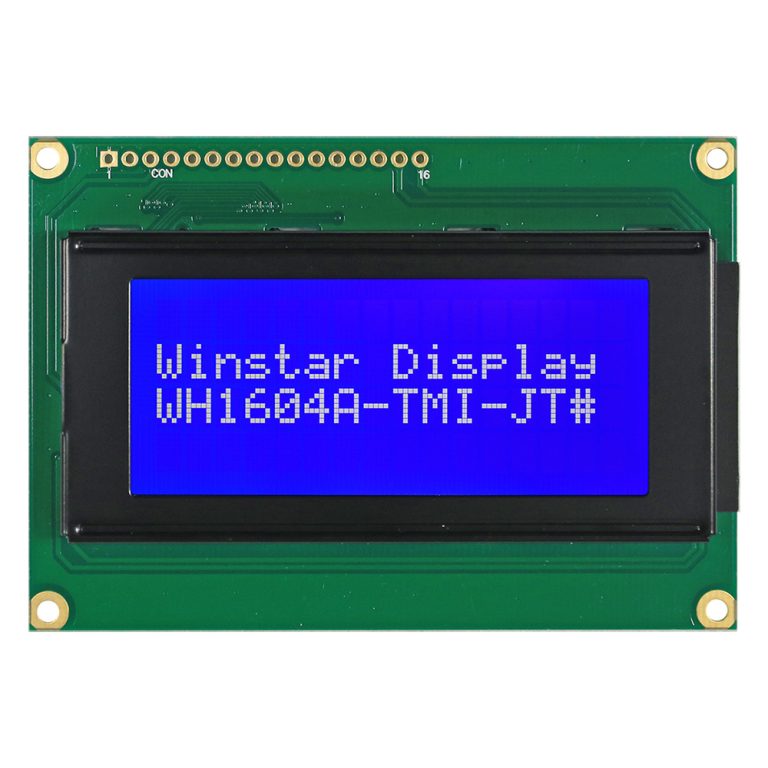

16×4	WH1604A	COB	2.36	87×60	62×26	56.2×20.8	2.95×4.75	0.55×0.55	1/16	6800,SPI,I2C	ST7066,RW1063

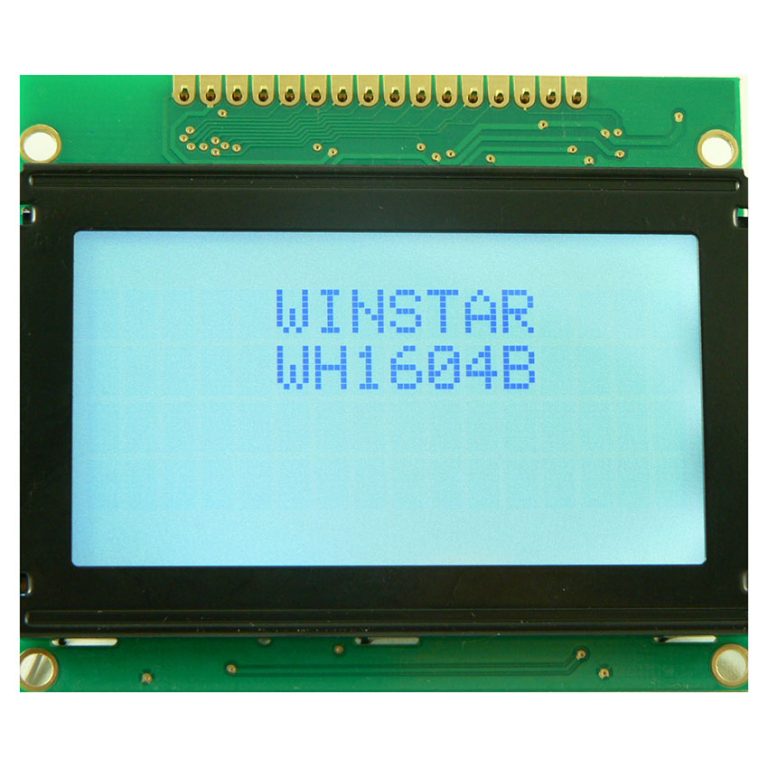

16×4	WH1604B	COB	2.36	70.6×60	60×32.6	56.2×20.8	2.95×4.75	0.55×0.55	1/16	6800,SPI,I2C	ST7066,RW1063

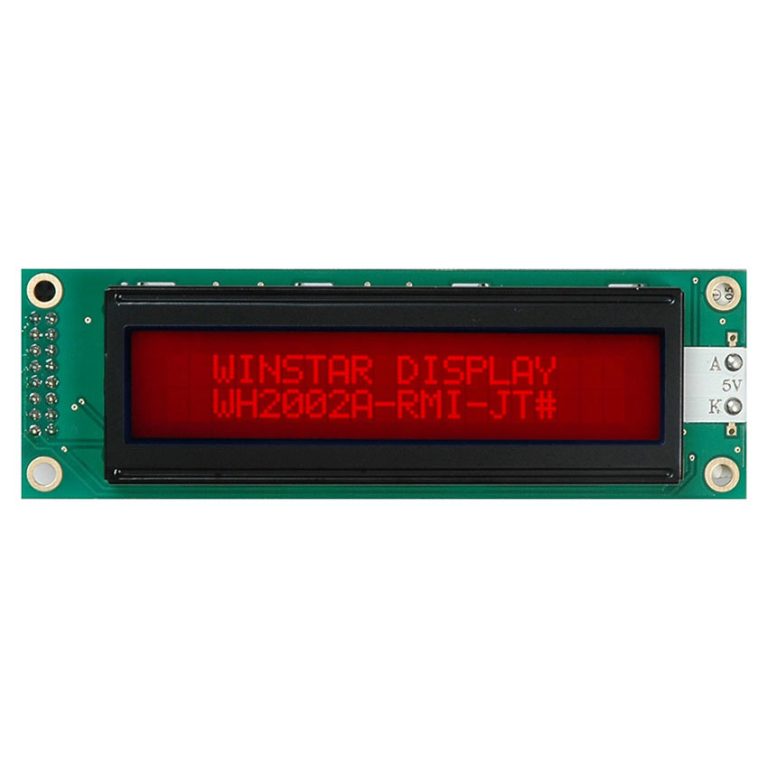

20×2	WH2002A	COB	2.93	116×37	85×18.6	73.5×11.5	3.2×5.55	0.60×0.65	1/16	6800,SPI,I2C	ST7066,RW1063
