Wire Terminal

Showing 13 – 20 of 20 results Showing all 20 results Showing the single result No results found

Part No.	Pitch	Rated Current	Surface Plating	Pin demensions (Thickness x Width)(mm)	Conductor Material	Description

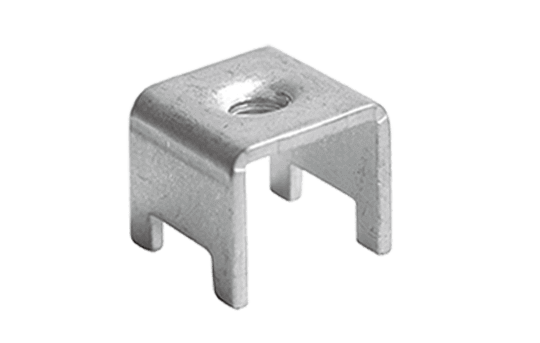

P-840	15.30 / 15.40	150A	Tin Plated	1.6x4.0	COPPER ALLOY	Barrier terminal blocks, Pitch: 15.30 / 15.40mm, 1.6x4.0mm, 150A

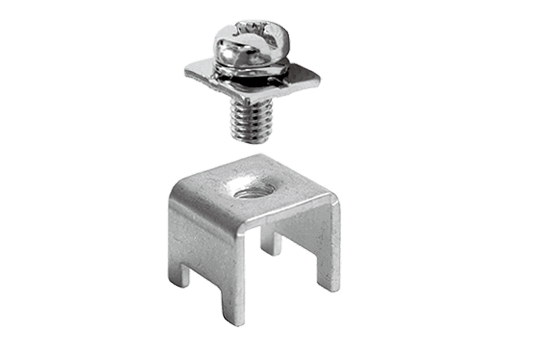

P-840W	15.30 / 15.40	150A	Tin Plated	1.6x4.0	COPPER ALLOY	Barrier terminal blocks, Pitch: 15.30 / 15.40mm, 1.6x4.0mm, 150A

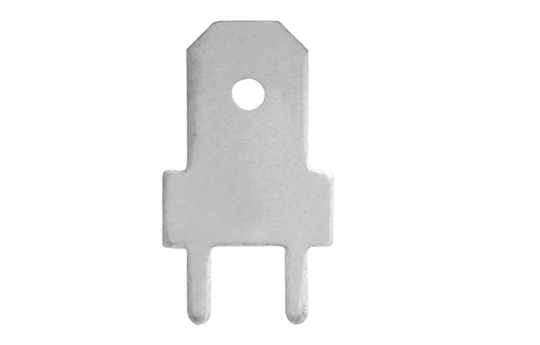

P-850	5.00 mm	32A	Tin Plated	0.8x1.2mm	COPPER ALLOY	Barrier terminal blocks, Pitch: 5.00 mm, 0.8x1.2mm, 32A

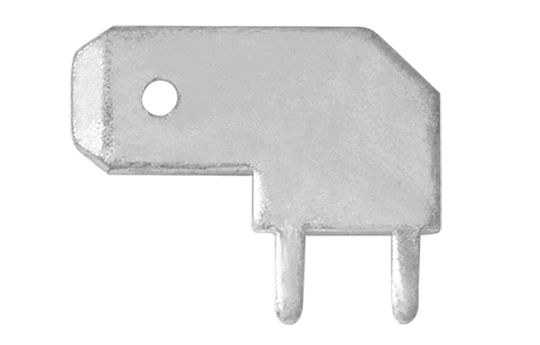

P-860	5.00 mm	30A	Tin Plated	0.8x1.2mm	COPPER ALLOY	Barrier terminal blocks, Pitch: 5.00 mm, 0.8x1.2mm, 30A

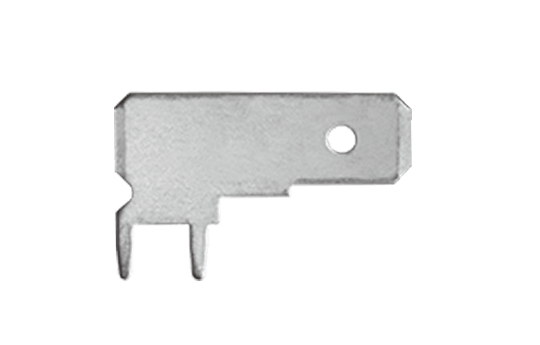

P-861	5.08 mm	30A	Tin Plated	0.8x1.2mm	COPPER ALLOY	Barrier terminal blocks, Pitch: 5.08mm, 0.8x1.22mm, 30A

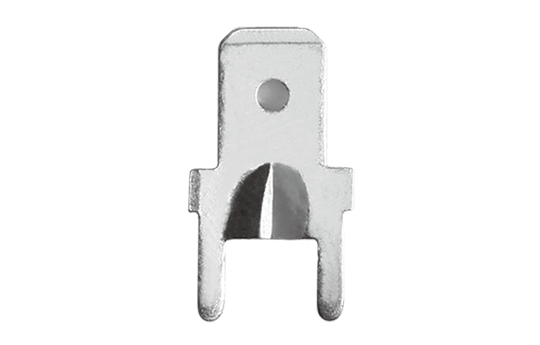

P-871	5.08 mm	30A	Tin Plated	0.8x1.2mm	COPPER ALLOY	Barrier terminal blocks, Pitch: 5.08mm, 0.8x1.2mm, 30A

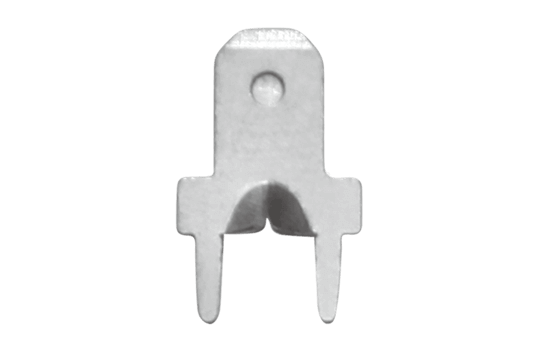

P-872	5.08 mm	30A	Tin Plated	0.5x1.2mm	COPPER ALLOY	Barrier terminal blocks, Pitch: 5.08mm, 0.5x1.2mm, 30A
P-852	5.08 mm	30A	Tin Plated	0.8x1.2mm	COPPER ALLOY	Barrier terminal blocks, Quick terminal blocks, Pitch : 5.08mm, 0.8x1.2mm, 30A
